M28 houseboat

propulsion

Electro

draught

0.91 m

fuselage shape

Monohull

CE category

mobility

Who has never dreamed of being able to get a change of breath at any time? Thanks to its drive motor and dimensions, the houseboat offers freedom and mobility. It is possible to travel with home and move a restaurant or art gallery from one city to another. Depending on the project, customers can decide whether the floating structure is motorized or not; however, it always remains mobile.

confort

Living on water doesn't necessarily mean sacrificing a comfortable and easy lifestyle. In fact, Boat is committed to offering an optimal level of comfort and wants to differentiate itself from dark and narrow barges through brightness, wide spaces and increased stability. This new generation of houseboats features a simple and modern design, high-quality furniture and equipment, and cutting-edge technology.

Sustainabiliy

This boat proves that comfort and beauty can be combined with sustainable solutions that provide answers to current environmental problems: recyclable materials, solar panels, water-based ship heating and air conditioning, a pellet stove, high-density insulation, energy-saving household appliances, a purification system that keeps waterways clean, and watermakers that supply drinkable water.

Self-sufficiency

To ensure maximum self-sufficiency, 1.5 tons of batteries are stored in the floats and supply the boat with energy. They can be charged by solar panels, shore power connections or by the 18 kW generator. In addition, the installation of a wastewater treatment plant and a water purification system is possible as an option, while allowing comfort, sustainability and independence.

modularity

Because every project is unique, Boat adapts to its clients' requirements by offering a standardized structure and customizable options, such as the size of the living space and terrace area, the motorization of the boat, the level of equipment and furnishing, and the degree of self-sufficiency in terms of energy and water. This aspect also enables a variety of concepts that differ from living: why not a floating bar or floating offices?

‍

Size and weight
Platform lengths: 10 m, 15 m, 20 m
Platform lengths: 5 m, 10m
Depth: between 1.00 m and 1.30 m
Draft: between 3.20 m and 3.50 m
Ceiling height: 2.25 m
Living space: between 40 and 160 m2
Lower deck terrace area: up to 50 m2
Upper deck terrace area: up to 190 m2

materials

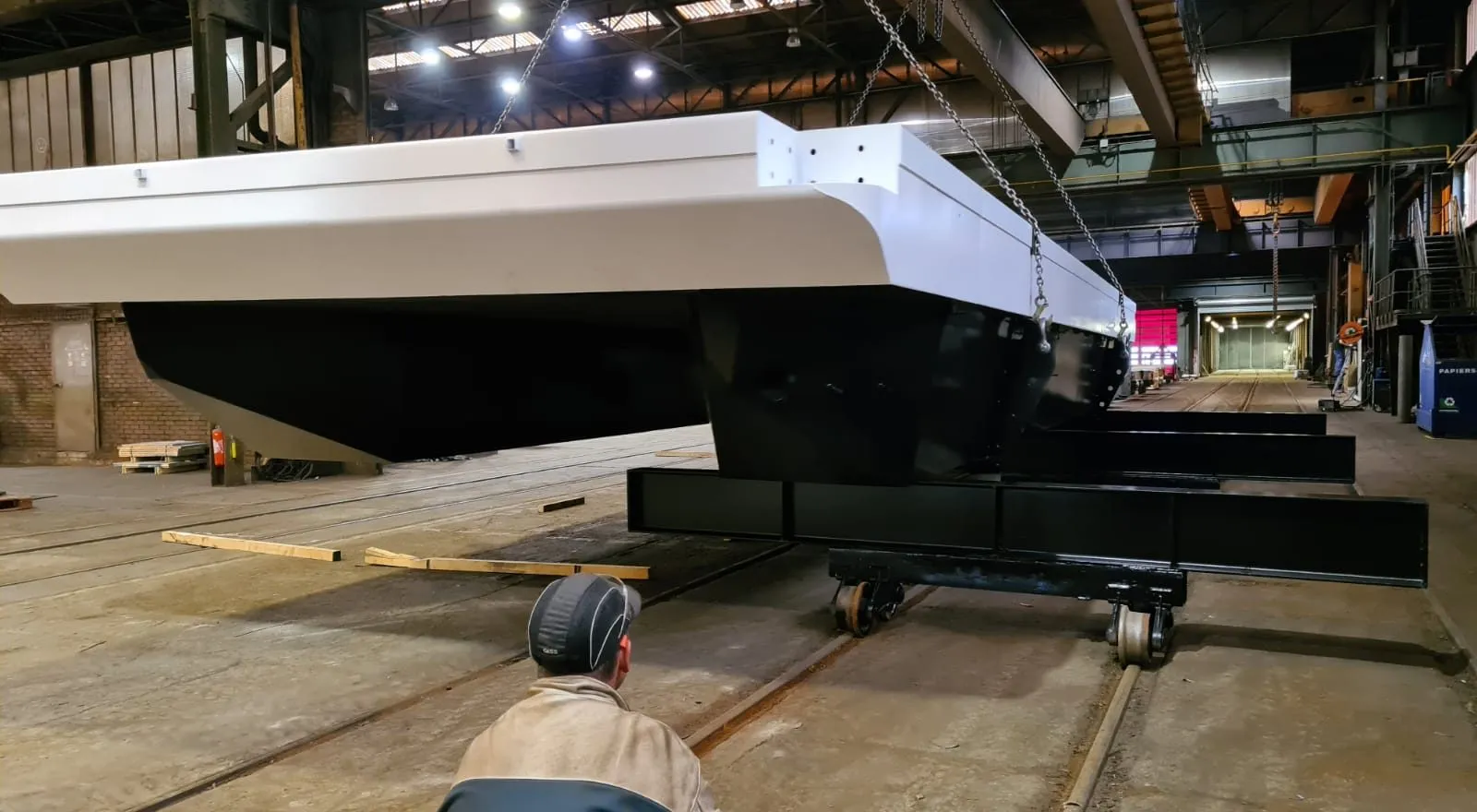

Barge: S235 steel
Barge painting: epoxy painting (inside 300 μm outside 500 μm)

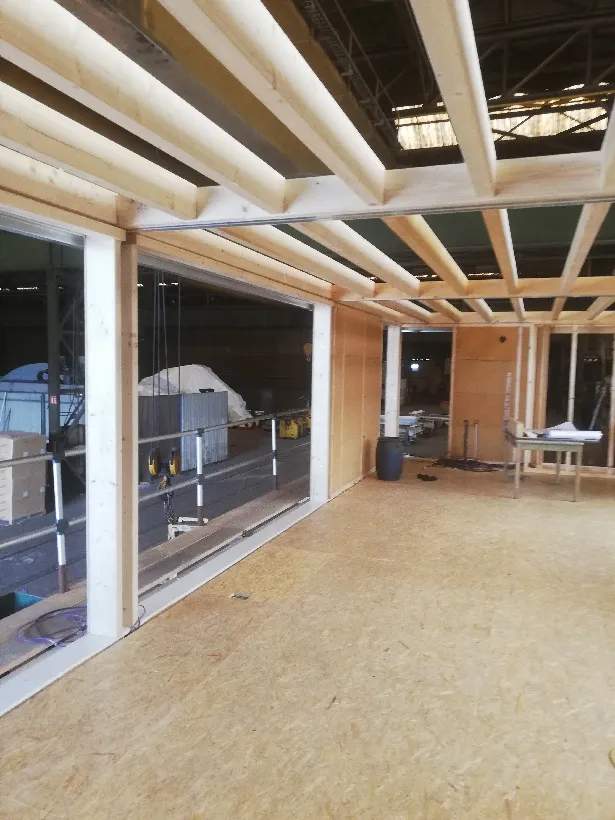

Frame: wood and metallic structure in HEB
Container: stainless steel
Base: 4.5 mm thick PVC coating
Walls: BA13+painted paper and fabric wall coverings Barrisol stretch ceilings
Terrace: PVC

Motorization and control
48V electric motors power 2 x 10 kW
Bow thruster power 2 x 10 kW agility, easy operation
Two pilot stations (indoor and terrace) 4-blade propeller, diameter 600 mm

flotation plant

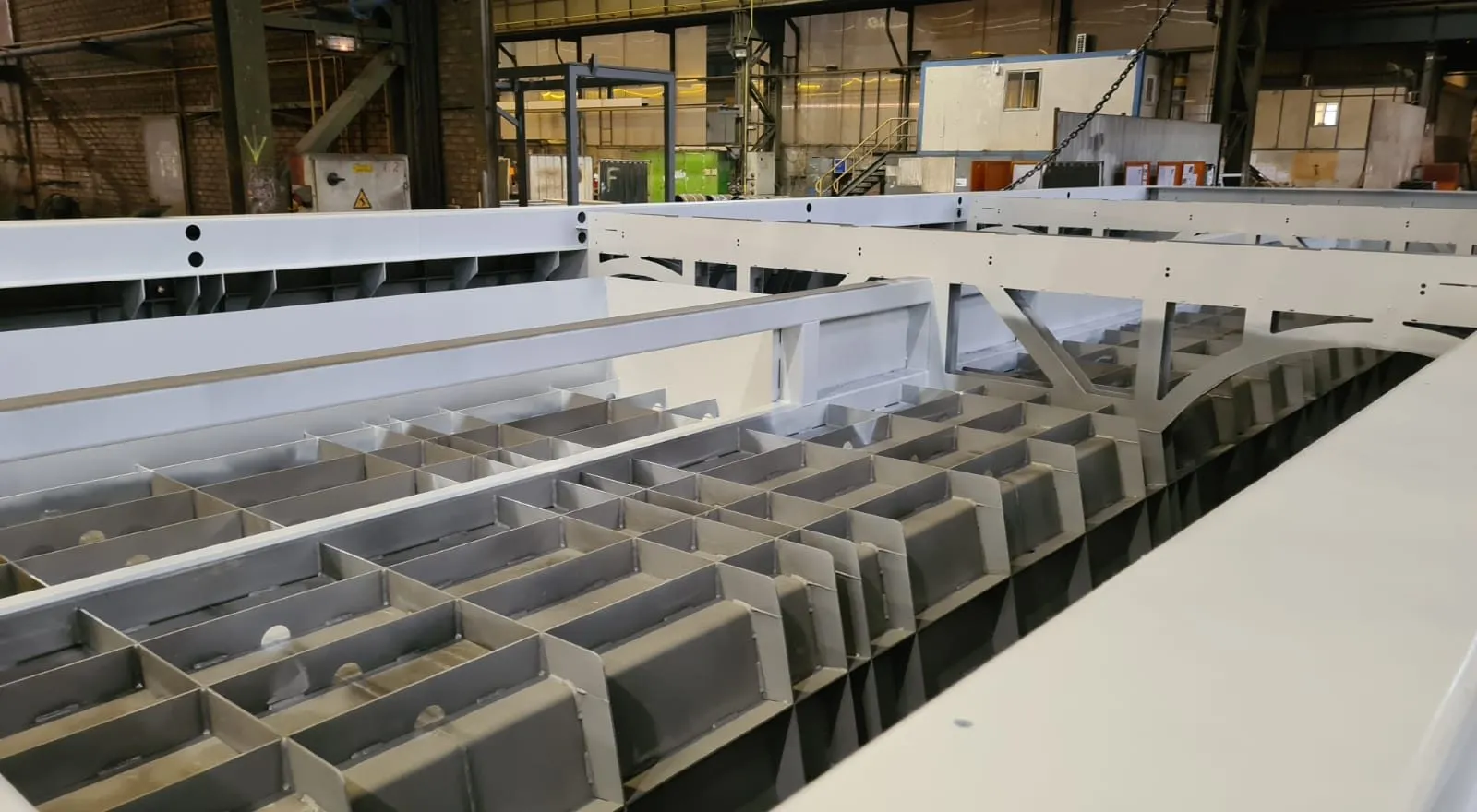

5 mm thick steel catamaran Reinforced stability
Storage of the technical part Additional storage space Floats accessible by traps.

energies
Diesel generator power: 18kW
Solar module output: 3 kW for 15 48V modules
Battery park: 24 2V gel batteries, 880 Ah, power 21 kW
Fuel tank: 220 l
DC voltages: 12 V, 24 V, 48 V
AC voltage: 220 V

water resources
Clear water tank: 2 x 700 l
grey water tank: 2 x 700 l
Blackwater tank: 475 l
Dual energy water heater: 160 l
Optional: waste water treatment system Optional: water purifier

Air conditioning, heating and insulation
Pellet stove heating and air-conditioning system reversible in case of water loss
Insulation: high-performance polystyrene 15 - 17 kg/m3
Wall, floor and ceiling thicknesses: 200 mm

Certification and licensing of houseboats
CE 9425 approval: D12 (inland navigation) Driving license for motorized pleasure boats optional inland navigation.

‍

funding

In the past, houseboat financing was difficult because, in contrast to construction financing, it did not offer a land register entry as collateral. However, the situation has improved steadily in recent years, not least due to growing demand. Through our partner comparison portal, you can now discover suitable offers at attractive conditions.

Compare now

length

14.98 m

width

4.85 m

Passage height

3.40 m

Usable area

Remodeled space

44 sqm

prize

€300,000
